GIMPING FOOT HV GRP 1-8

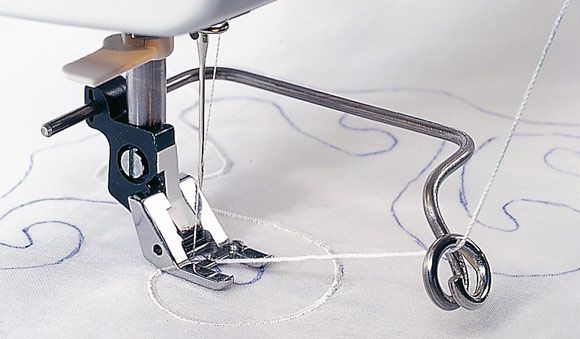

Use the Gimping Foot to create a dimensional satin stitch
technique. Gimp thread is guided by the foot as the stitch is
sewn over it.
1. Thread a 40 weight rayon thread on top, embroidery bobbin thread in the bobbin.
2. Insert the gimp thread into the guide on the foot. Place the spool or length of gimp
thread so it will feed smoothly into the foot as you sew.
3. Select a narrow satin stitch. (Follow the instructions for appliqué with the width just
wide enough for the zigzag to stitch over the gimp.) On computer machines, select the
preprogrammed satin stitch and fine tune the length and width to sew over the gimp.
On other machines; select a zigzag stitch, length 0.3–0.5, width 1.5–2.
4. Mark a design onto your fabric and sew over it. The design will be outlined in
dimensional satin stitch.
Note: Gimping/Braiding Guide (412554445) sold separately
Product Number 412580545
Fits 1,2,3,4,5,6,7,8
Not for
EMERALD™ 122, 118 and 116 machines,
EDEN ROSE™ 250M, TRIBUTE™ 140M, 145M.
Get in touch with us if you are unsure which foot your machine takes, we can help!
