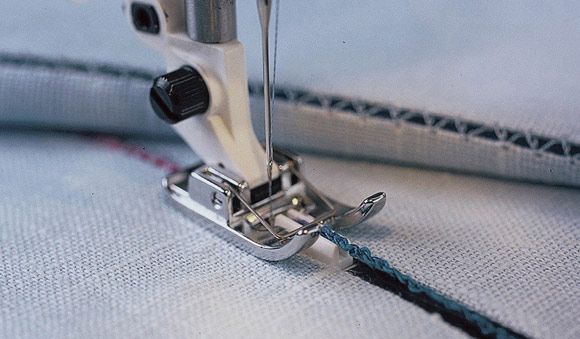

SPANISH HEMSTITCH FOOT HV GRP 6,7,8

Spanish Hemstitching is a delightful addition to any project. It is used
to join two finished edges. It works well to attach borders, edging to
a skirt or curtain or to piece fabric, for example to achieve the width
needed for a tablecloth. For the above models, the Spanish Hemstitch
Distance Plate snaps on to the standard needle plate.
1. Snap the Distance Plate onto the needle plate by placing the little prongs into the holes in
the plate. Be sure that the plate doesn’t cover the feed teeth. Snap on the Spanish Hemstitch
Foot.
2. Thread with a decorative thread on top and in the bobbin.
3. Select a zigzag, three step zig zag. Adjust stitch width to make sure that the needle
catches the fabric edges. Note: Avoid using stitches with too much side motion and stitches
with too much motion forward and back.
4. You need to have a finished edge. If necessary, press under a 3/8” (1 cm) seam allowance on the
fabric edges that will be stitched together.
5. Place the pressed edge of the pieces on each side of the Distance Plate.
6. Lower the presser foot.
Start with a long thread tail of both top and bobbin thread. Hold these threads as you begin
sewing until the needle catches on the fabric. Because of the nature of the stitching, it will
stitch on “air” for several stitches before it goes over and catches the fabric edge. Once the
needle has caught the fabric, you can let go of the threads. Sew, holding the edges gently
together in front of the foot. Optional: Place a decorative thread in the groove of the Distance
Plate.

Product Number 413064845

Fits BRILLIANCE™ series, DESIGNER DIAMOND™ series,
DESIGNER RUBY™ series, DESIGNER TOPAZ™ series,
SAPPHIRE™ series, OPAL™ series, DESIGNER JADE™ series,
EDEN ROSE™ 250C, TRIBUTE™ 140C, 145C, 150C.

Get in touch with us if you are unsure which foot your machine takes, we can help!
